直線導軌、滾珠絲杠的保養和使用磨損
來源:http://m.feicui77.cn/ 日期:2023-05-20 發布人:

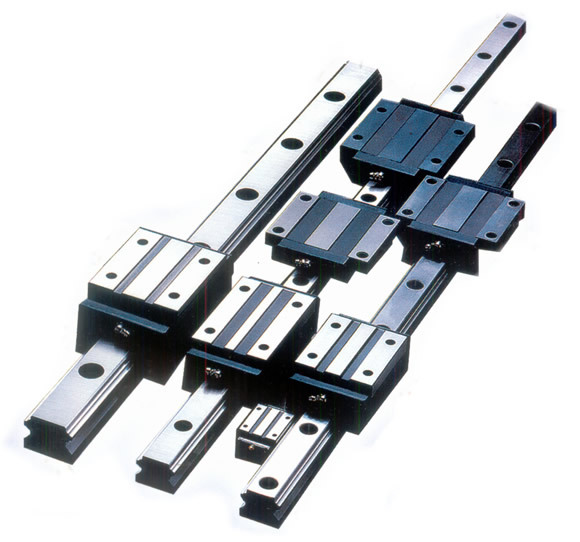

一般的直線導軌和滾珠絲杠在滑座和絲母端部有注油嘴,使用油脂搶就可以將潤滑脂注入導軌和絲杠的內部,有效的保養不僅保證設備的精度和速度,同時可延長設備的使用壽命。下面導軌絲杠廠家為您講解一番相關事項:
The general linear guide rail and ball screw have oil injection nozzles at the sliding seat and screw nut ends. By using a grease gun, lubricating grease can be injected into the interior of the guide rail and screw. Effective maintenance not only ensures the accuracy and speed of the equipment, but also extends its service life. The manufacturer of the guide rail screw will explain some related matters to you below:
保養有這么幾點:
There are several maintenance points:
1、細心擦凈直線導軌和滾珠絲杠的表面油污,特別是溝槽里的油污;直線導軌要注意導軌的安裝孔的油污。
1. Carefully clean the surface oil stains of the linear guide rail and ball screw, especially the oil stains in the grooves; Pay attention to oil stains on the installation holes of the linear guide rail.
2、用油脂搶注油,油嘴往傳動腔內部加油,直內部污油完全被擠出,被擠出的污油。
2. Use grease to fill the transmission chamber with oil, and add oil from the nozzle until the internal dirty oil is completely squeezed out, removing the squeezed dirty oil.
3、用手指在直線導軌、滾珠絲杠表面涂少許油脂,有限保證溝槽油脂能夠完全覆蓋。
3. Apply a small amount of grease on the surface of the linear guide rail and ball screw with your fingers to ensure that the groove grease can fully cover it.
4、手推絲母、滑塊來回往復幾次,確保油膜均勻。
4. Push the screw nut and slider back and forth several times to ensure even oil film.
5、多余的油脂、暖機。
5. Eliminate excess grease and warm up the engine.


傳動部件的保養頻率,建議是在1-3月之間一次,根據使用環境以及時間長度進行保養,更加有利于傳動部件的使用壽命以及精度。
The recommended maintenance frequency for transmission components is between 1 to 3 months, based on the usage environment and duration, which is more conducive to the service life and accuracy of transmission components.
直線導軌在使用過程中會造成一些磨損;直線導軌在使用的過程中,因為使用頻率和日常維護的關系,經常會遇到導軌磨損的情況;微動磨損是在溝槽上有一些小凹陷的坑,間距基本等于鋼球的直徑。由于缺少油膜嚇得短行程和滑動中加速度氧化的過程;當短行程使用直線導軌時,使用潤滑脂,可以形成更強的油膜。
The linear guide rail may cause some wear during use; During the use of linear guides, due to the frequency of use and daily maintenance, they often encounter wear and tear on the guides; Micro wear refers to the presence of small pits on the groove, with a spacing basically equal to the diameter of the steel ball. The process of short stroke and acceleration oxidation during sliding due to the lack of oil film; When using linear guides for short strokes, using grease can form a stronger oil film.
設備在平常生產中,由于加工中的切削負荷對在往復活動中,直線導軌產生疊加力,容易磨損直線導軌、以及劃傷等各種缺陷。再加上潤滑條件的缺陷,隨時間的推移,就會使加工精度就天然降低,當磨損達到一定的程度就無法正常使用。更多相關事項就來我們網站http://m.feicui77.cn咨詢!
In normal production, due to the cutting load during processing, the linear guide rail generates superimposed forces during reciprocating activities, which can easily wear and tear the linear guide rail, as well as various defects such as scratches. In addition, defects in lubrication conditions can naturally reduce machining accuracy over time, and when wear reaches a certain level, it cannot be used normally. For more related matters, come to our website http://m.feicui77.cn consulting service
